Ancillary Products

This section and unit includes :

  • Ambient AIr Cleaners
  • Extractions Arms
  • Mobile Extractors
  • Welding Booths
  • Vehicle Exhaust
No items found.

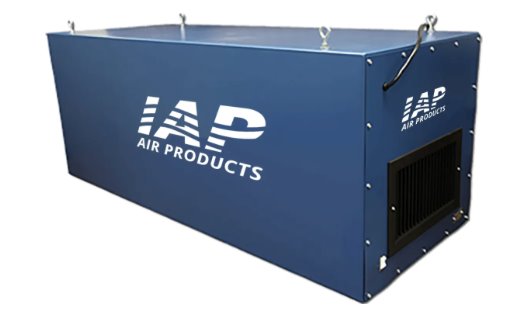

Ambient Air Cleaners

Unit Overview:

IAP Air Products ambient air cleaners effectively remove ambient pollutants without the need of a dust collector and ducting. They are low maintenance units that can easily be mounted to a wall, hang from the ceiling, and some of them can be placed on a shelf. They can be used in a variety of applications from wood shops, to fire stations, to classrooms. This product comes in 2 models : A-2500, Product A-3000

Ambient Air Cleaner:

APPLICATIONS: Provides efficient removal of irritating contaminants such as smoke,chemical fumes, mist, or dust.

METHOD OF OPERATION: Dirty air enters one side of the collector and is trapped inthe filters and clean air is exhausted.

INSTALLATION: Suspend from the ceiling with chains/threaded rod or hang on the wall with brackets.


Avoid health and safety hazards that cause respiratory ailments.
Reduce make-up air requirements by cleaning and re-circulating air versus exhausting outside.
Reduce housekeeping by filtration with air borne particles that settle one quipment.
Lower in cost for the amount of cfm.Assists meeting OSHA standards (based upon filtration and design considerations).

SIZING EXAMPLE: A company performs welding and grinding intermittently at several workstations in a room. The smoke and fumes irritate employees in the room. Fans are installed in the room to assist with the smoke,while providing cool air during summer months.The room is 80' x 40' x 15' tall = 48,000 cubic feet.

Extraction Arms

Unit Overview:

IAP Air Products offers a full line of Welding Fume Extraction Arms / Snorkels that can be utilized to safely control process fumes, dust, and smoke. Extraction Arms / Snorkels are specially designed for working environments with fumes, light dust, and smoke; where source capture is desired before the contamination has spread into the work environment and could be inhaled. The applications can be welding, grinding, or other industrial processes where an easily positioned welding fume extraction arm is required.

Mobile Extraction

Unit Overview:

Mobile Welding Fume Extraction units from IAP are perfect for manufacturing places that require portable welding fume extraction that can travel between workstations. Our systems offer easy mobility due to their compact size. For source capture of welding fumes simply roll the machine up to your workstation and flip it on. It’s that easy. Create healthy breathing zones for all of your employees. We have portable welding fume extraction units in stock and can ship them out the same day you order them. The units have 3-Stage Filtration and optional HEPA and Carbon Canisters.

  • 3-Stage Filtration
  • Dust Drawer
  • Filter Gauge
  • Casters with brakes
  • Heavy gauge powder coated steel
  • Customer to select fume arm size
  • Inlet Plate 6” or 8” diameter arm

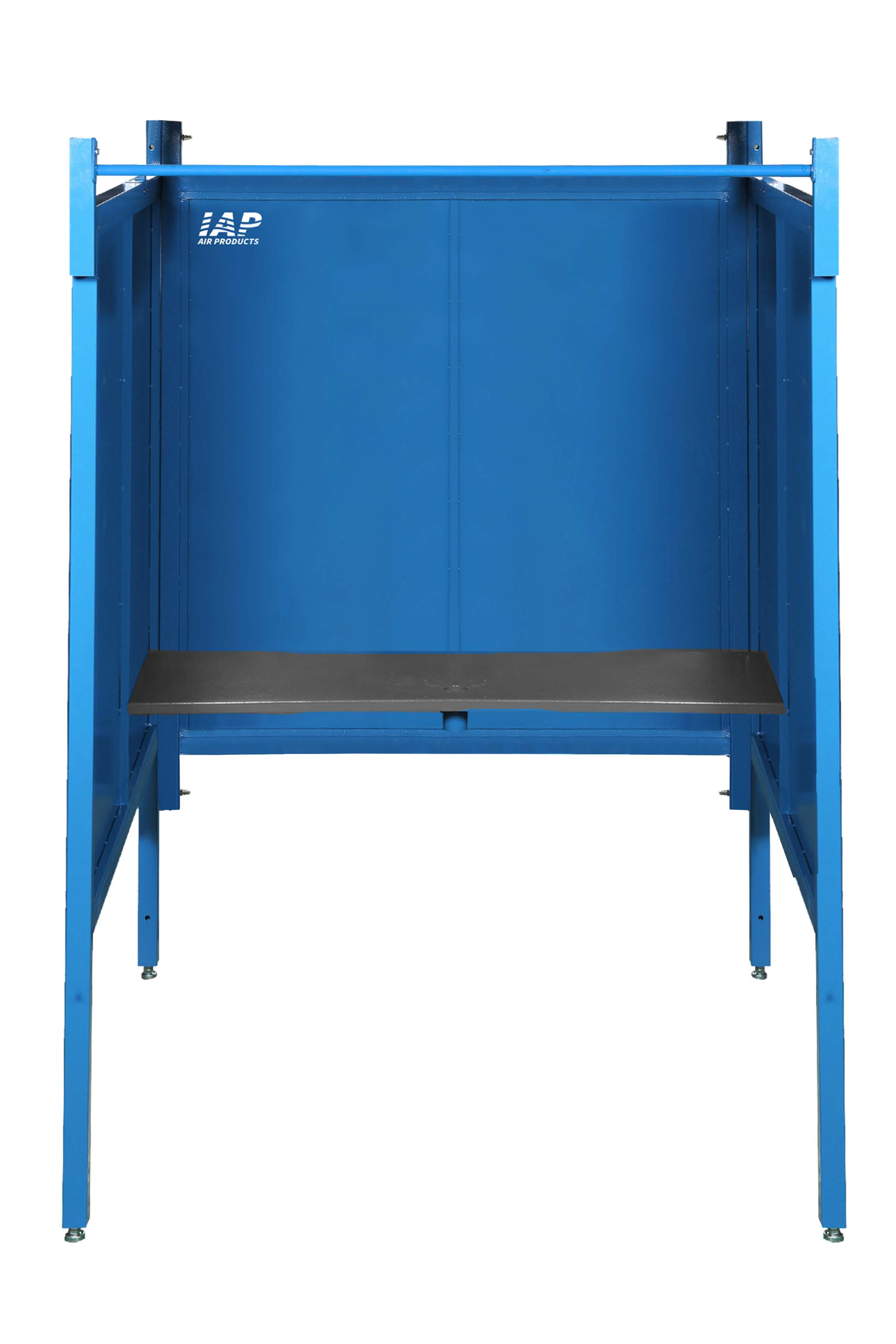

Welding Booth

Unit Overview:

Fume extraction welding booths are designed for welding schools, technical colleges, and smaller facilities needing a welding solution. IAP welding booths are designed for the extraction and filtration of weld fume, smoke, and pollution control. They go well with our other products, such as our hanging fume extraction arms. Our booths are high quality and are designed for rigorous use in academic settings such as high school welding labs or technical colleges that teach advanced welding courses. Welding booths can be used individually or customized in groups.

  • Walk in booth, 3 piece construction, 2 side/1 back panel
  • 14 gauge construction
  • Curtain rod
  • Powder coated
  • Adjustable feet for leveling
  • Fixed rear shelf 20"D, 11 gauge construction (unpainted)
  • Hanging fume arm connection bracket option
  • Weld curtain option
  • LED light kit option
  • Individual booth or customizable groupings

Vehicle Exhaust

Unit Overview:
  • Dimensions: 24" W x 24" H x 67" L
  • Weight: 240 lbs
  • Power: 115V/1/60
  • Amps: 10.2
  • Wiring: 3 Prong with 10 feet of cord
  • CFM - Maximum: 2500
  • Motor: 3/4 HP Direct Drive w/ Thermal Overload
  • Cabinet: 16 Gauge Steel
  • Finish: Blue Powder Coat
  • Speed Control: Low and High Toggle Switch
  • Air Flow: Straight through
  • Decibels: 65 dBA at 5'
  • Warranty: 1 year limited, excluding filters
